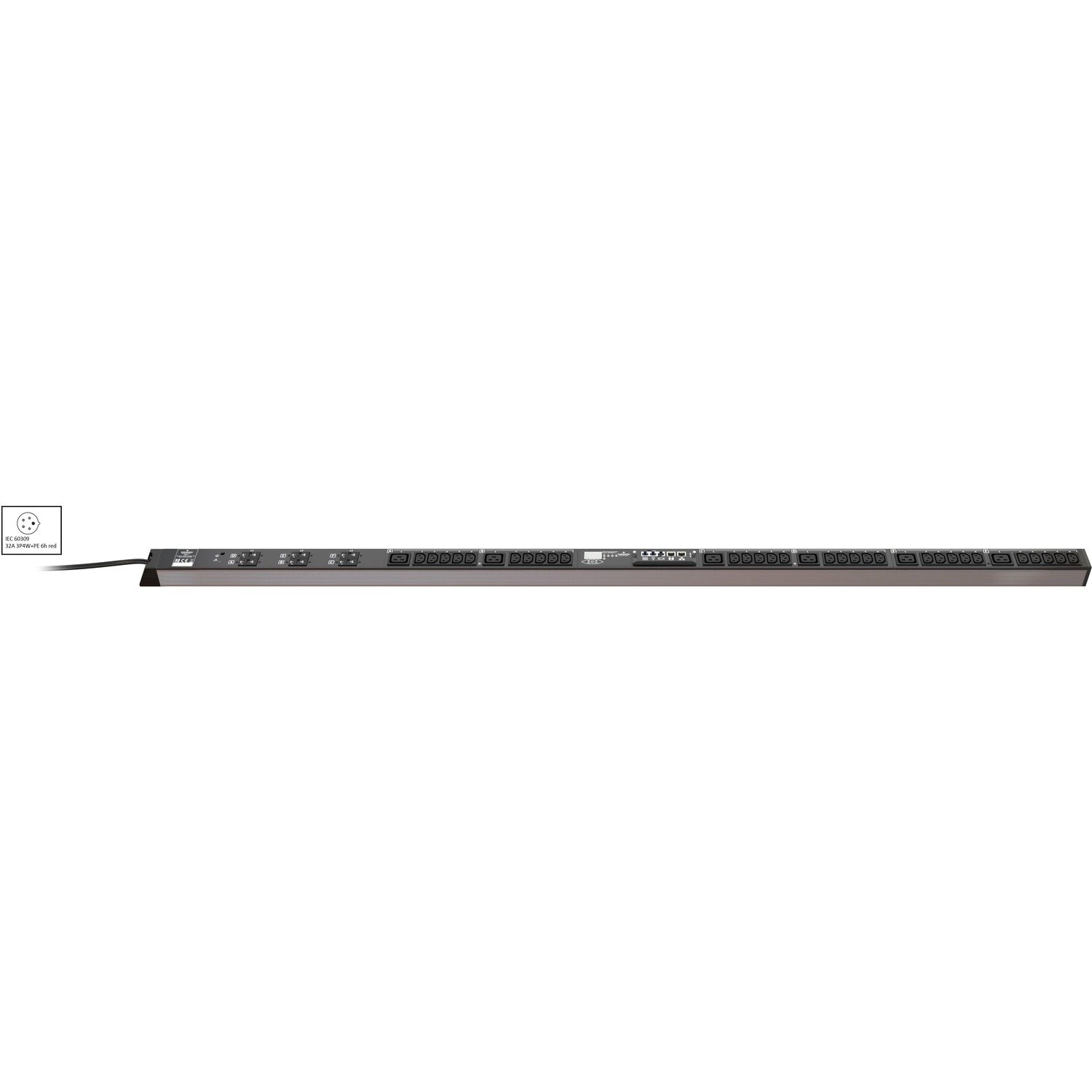

The newly developed Managed Rack PDU MPH2™ is a power supply system with monitoring and control functions.
Standout features of the MPH2™ are simple integration into rack and management architectures along with the highest levels of availability and energy efficiency. The housing comprises a compact aluminum profile, allowing easy, space-saving installation in Knürr racks or in other housing systems. Depending on the model, the MPH2™ can be installed vertically or horizontally (19").
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- VERTIV
- Product Line
- MPH2
- Product Series
- B
- Product Type
- PDU
- Technical Information
- PDU Type
- Metered
- Plug/Connector Type
- IEC 60309 32A 3P+N+G
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 30 x IEC 60320 C13
- 6 x IEC 60320 C19
- Protection Type
- Overcurrent Protection
- Power Description
- Input Voltage Range
- 230 V AC - 400 V AC
- Power Rating (Watt)
- 22 kW
- Input Current
- 32 A
- Circuit Breaker
- Yes
- Management
- Management
- Onboard Web Interface
- CLI
- SNMPv1,2,3
- SSH
- Telnet
- Integratable into Avocent ACS
- UMG & MPU
- DSView
- Rack Power Manager
Vertiv Management Software Programs:
- Nform
- Trellis
- Nagios
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Cord Length
- 3 m
- Width
- 56 mm
- Depth
- 50 mm
- Miscellaneous
- Certifications & Standards
- CE
- EMC
- LVD
- BV-BG
- CB
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
